Model:

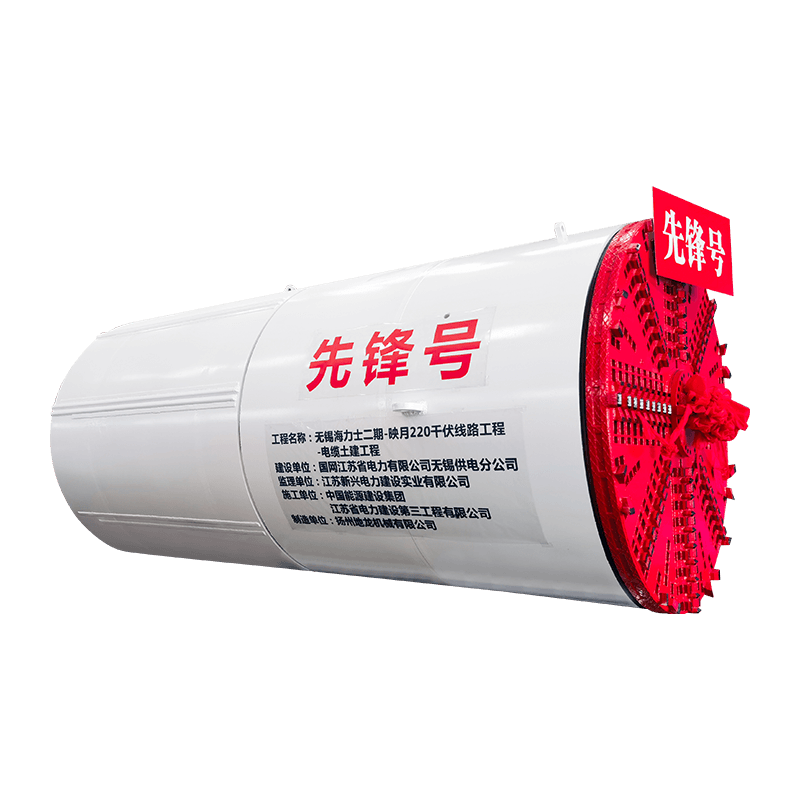

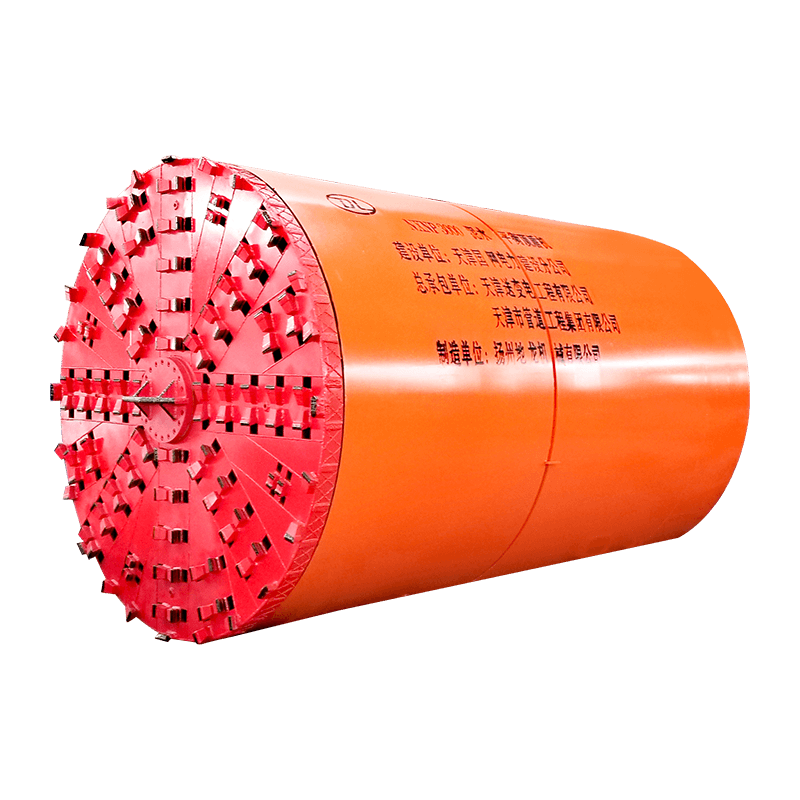

Slurry Balance Shield Machine

Feature:

1. Suitable for tunnel construction with high water pressure and high ground settlement requirements; high advancing efficiency, safety and reliability;

2. Two types of slurry balancing control, direct control and indirect control type;

3. Advanced and reliable cutter head design and slurry circulation system;

4. Reliable main bearing, main drive seal and main drive reducer, with long service life and high safety factor;

5. The self-developed control software system has safe and reliable performance and convenient operation.

Contact us

Description

SPBMs are mainly used in underground water, soil, and the permeability coefficient of geological conditions.

Slurry TBM pump the muck of excavation in the form of mud to the outside of the tunnel by the high-power slurry pump. So this type of machine has features of high efficiency, clean working environment.

According to the different ways of controlling the slurry on the excavation surface, the slurry balance shield can be divided into two types: direct control type and indirect control type.

The direct control SPBM can control the working pressure of the slurry tank by adjusting the speed of the sludge discharge pump or the opening of the slurry control valve. This control method is simple and convenient with a low failure rate.

The indirect control SPBM indirectly adjusts the working pressure of the slurry tank by changing the pressure of the air cushion tank. This control method has a sensitive reaction and high control.


Position

● Safe tunneling technology for heterogeneous ground

Geology

● Soft ground, Heterogeneous ground (sand, gravel, high water permeability and water pressures)

Advantages

● Maximum tunneling safety due to precise support of the tunnel face with an automatically controlled air cushion

● Usable in high water pressures of more than 15 bar

● A range of special solutions available for special project requirements


All Yangzhou Dilong EPBMS are Equipped with

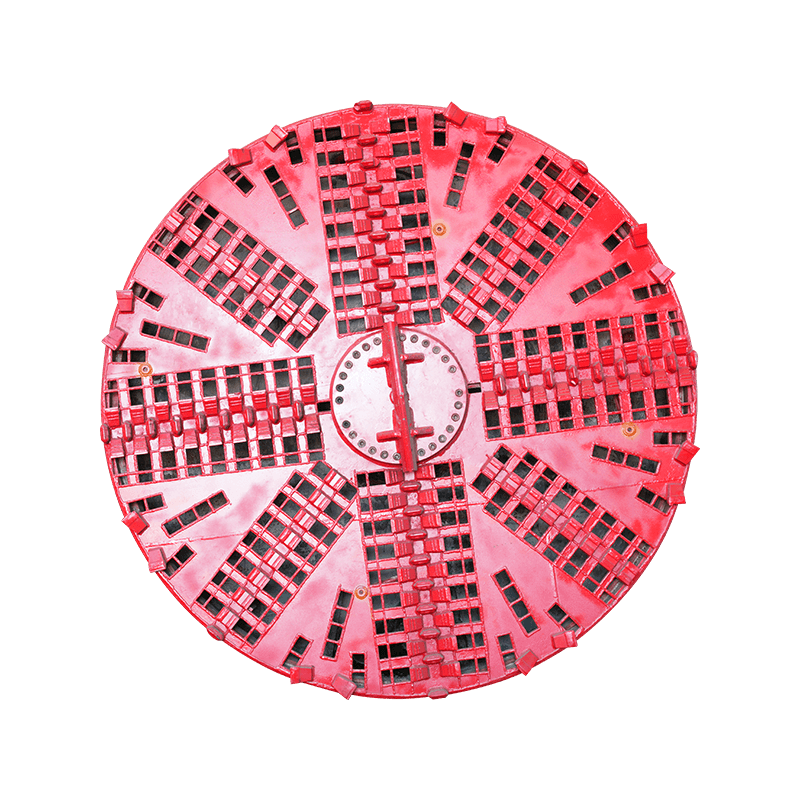

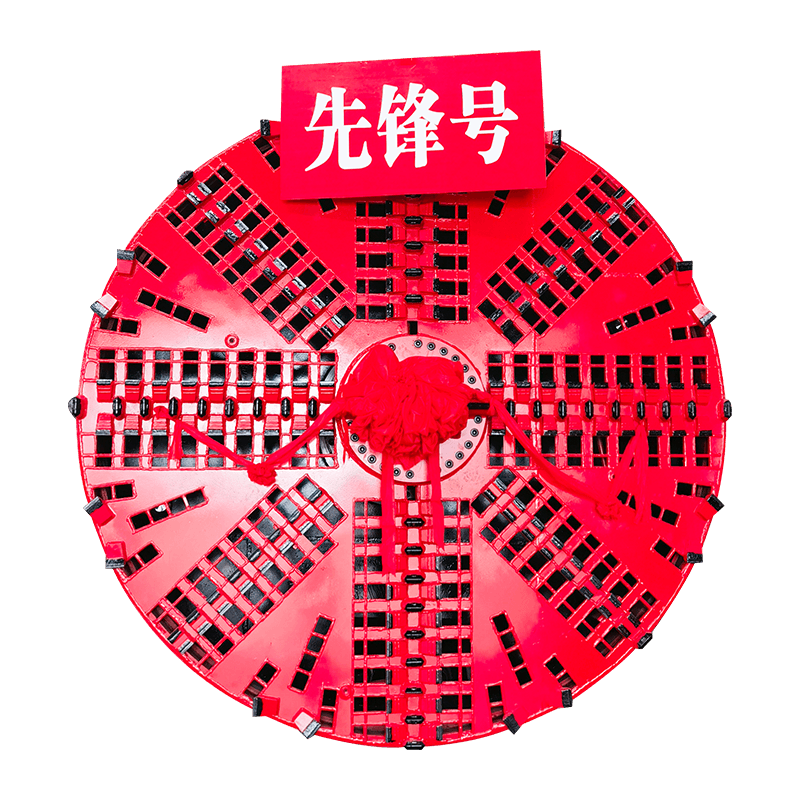

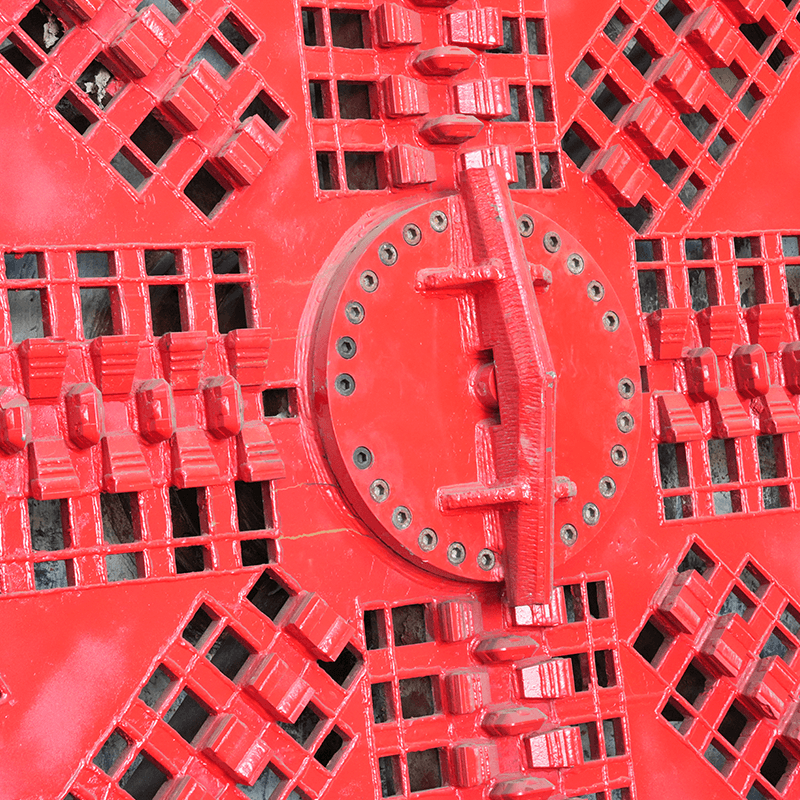

A cutter head and cutting tools are specifically engineered to cope with the expected geology. The cutter head may be designed with:
● Back-loading disc cutters and drag picks where soil with boulders or massive rock is expected.
● Drag picks only where no rock is expected.
● Full coverage with drag picks and partial coverage with disc cutters where occasional boulders are expected,
● A copy cutter to overcut the tunnel for steering.
● A high-capacity main bearing for reliability and longevity.
● High-pressure seals on the cutter head drive, articulation joint, and tail shield to prevent water inflow.
● High-speed rotary segment erector mounted.
● Active shield articulation cylinders for steering.

Slurry Balance Shield Machine

Yangzhou Dilong Machinery Co., Ltd.

The company is a branch of Taizhou Best Automation Technology Co., Ltd. It is a high quality Slurry Balance Shield Machine and wholesale Slurry Balance Shield Machine company, high-tech enterprise integrating R&D, production, and sales. The company's products help enterprises reduce human resources, save production costs, increase output, and achieve automated and unmanned production. We adhere to the business philosophy of "integrity-based, service-oriented", win customer satisfaction with efficient and fast services, establish a complete service system, and extend service content to the entire process of pre-sales, sales, and after-sales to achieve comprehensive and thoughtful Zero defect service. Help you establish a new intelligent production system.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

send
Yangzhou Dilong Machinery Co., Ltd.

As China Slurry Balance Tunneling Machine Manufacturers and Slurry Balance Tunneling Machine Factory, Yangzhou Dilong Machinery Co., Ltd. is a professional production enterprise that integrates the design, manufacturing, and service of various non-excavation equipment. It mainly produces mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various pipe jacking supporting equipment between 1000-4500mm.
The company is located in Jiangdu District, Yangzhou City, adjacent to Suzhong Airport, Ningqi Railway, and Beijing Shanghai Expressway, with convenient transportation and smooth logistics. The company covers an area of 80 acres, has 100 employees, an annual output value of 100 million yuan, complete large-scale processing equipment, and strong strength.
Since its establishment, the company has aimed at the goal of "quality and brand, crossing the globe, and building a non-excavation production base", widely absorbing advanced technologies from home and abroad, constantly keeping pace with the times, innovating and improving. We can also Custom Slurry Balance Tunneling Machine in bulk. Its professional equipment has reached a high level in the industry and has won the recognition and trust of users with product quality, on-time delivery, and thoughtful service. Its products are sold to many countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.
Sincerely welcome friends from all walks of life at home and abroad to visit negotiate, and seek common development.

Certificate Of Honor

Product Knowledge

Slurry Balance Shield Machine's Cutter Head Design and Geological Adaptability

In the design of the cutter head for a slurry balance shield machine (SPBM), the primary factors to consider are the cutter head's cutting ability and its adaptability to different geological conditions. For example, in soft soil and sand areas, the shield machine needs to use drag cutters to ensure the soil can be quickly and efficiently cut and removed. In geological environments with hard rock or large boulders, the cutter head typically needs to be equipped with back-loading disc cutters and large stone-cutting tools to ensure sufficient strength to handle the tough rock challenges. Additionally, the design of the cutter head must consider the efficiency of the slurry circulation system, ensuring that the shield machine can efficiently excavate soil under high water pressure or conditions of high water permeability, while maintaining the pressure balance in front of the tunnel through slurry.

In particular, the advantages of slurry balance shield machines become more evident in high water pressure environments. The combined slurry circulation system and cutter head design can effectively control the soil pressure in front of the shield machine, preventing tunnel collapse while minimizing interference with groundwater. Through the continuous injection and circulation of slurry, not only can the working face be stabilized, but it can also avoid construction risks caused by uneven soil conditions in complex geological environments. The "Slurry Balance Shield Machine" produced by my company is specifically designed for such needs, featuring an efficient cutter head design and a powerful slurry pumping system that can efficiently handle extremely complex construction environments.

Moreover, the cutter head design of the slurry balance shield machine works in close coordination with the main drive system, sealing system, and main bearing system. Through precise design, the system ensures efficient operation, reduces equipment failure rates, and extends service life. My “Slurry Balance Shield Machine” is rigorously optimized in both cutter head design and system integration, making it capable of handling complex geology such as soft soils and high water pressure conditions, while also effectively reducing equipment maintenance costs and improving the overall economic benefits of the project.

How Slurry Balance Shield Machines Help Improve Transportation and Infrastructure Construction

The greatest advantage of slurry balance shield machines in tunnel construction is their ability to operate in highly complex geological conditions. Traditional tunneling methods are often limited by uneven geology, fluctuating water levels, and soft soils, resulting in significant risks and uncertainties during construction. However, slurry balance shield machines, through their slurry circulation system, can maintain stable operation under high water pressure and in complex soil layers, minimizing issues such as soil collapse and groundwater infiltration. This provides safer and more efficient solutions for the construction of urban transportation networks. For example, in subway construction, slurry balance shield machines can precisely excavate tunnels in densely built urban environments, reducing the impact on surrounding buildings and significantly shortening construction timelines while lowering costs.

Additionally, the high efficiency of slurry balance shield machines has led to their increasing use in large-scale infrastructure projects. In the construction of cross-sea and cross-river tunnels, the advantages of these machines are especially prominent. The efficient slurry circulation system enables the machine to maintain pressure at the working face, ensuring smooth tunnel progress, particularly in soft soil and high water level areas. The "Slurry Balance Shield Machine" manufactured by my company offers enhanced geological adaptability and operational precision, equipped with an efficient cutter head system and intelligent control system. This ensures safe construction processes and improves the overall efficiency of tunnel projects. By applying these advanced technologies, our equipment can significantly accelerate the progress of large-scale transportation projects, driving the rapid development of urban infrastructure.

In infrastructure construction, the high efficiency and environmental benefits of slurry balance shield machines also bring significant economic advantages to the projects. By reducing environmental disturbances during construction—especially in water protection zones or city center projects—these machines can minimize noise and pollutant emissions, ensuring a better quality of life for urban residents. Additionally, through precise soil excavation technology, slurry balance shield machines reduce the land occupation typically required by traditional construction methods, thereby conserving valuable urban land resou
