Earth Pressure Balance Pipe Jacking Machine Suppliers

Home / Product / Pipe Jacking Machine / Earth Pressure Balance Pipe Jacking Machine

Model:

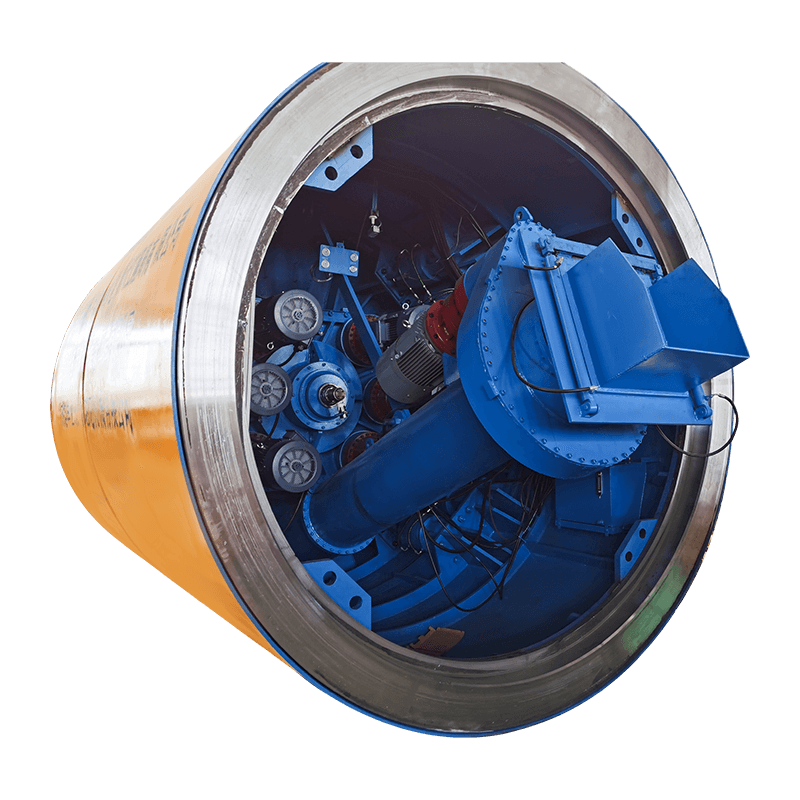

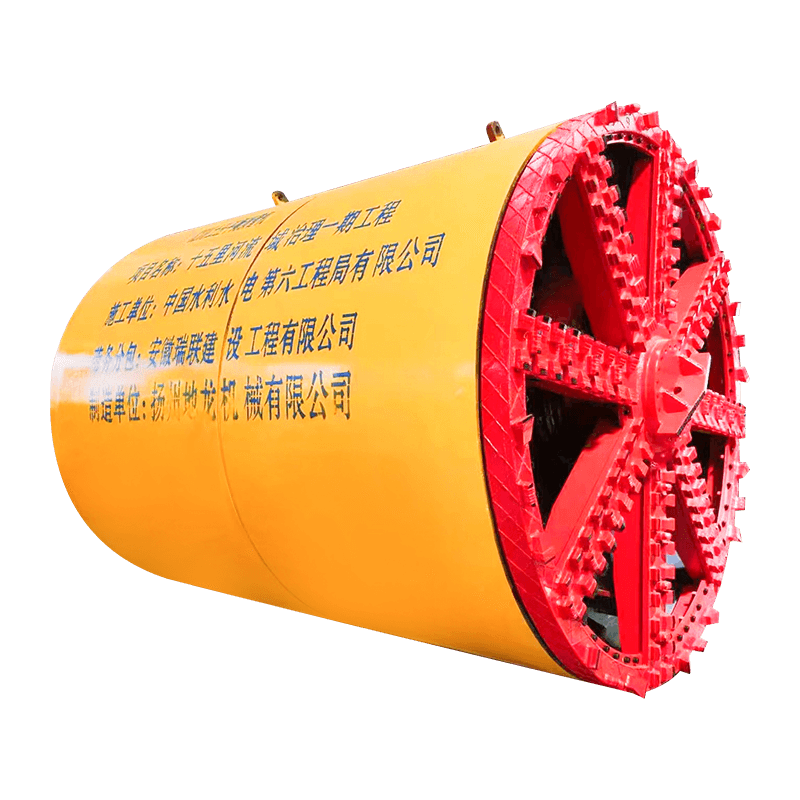

Earth Pressure Balance Pipe Jacking Machine

Feature:

1. Earth pressure balance micro-tunnel boring machine of large cutter disk is used in soft soil, hard soil, sand, and pebble layer, and is suitable all kinds of soil conditions.

2. By reasonable way of grouting can improve soil, maintain stability of the control surface, and ground subsidence.

3. Soil transport and handling convenient, simple, good working environment, safety, convenient operation, suitable for medium and large diameter pipejacking operations.

Contact us

Description

Diameter

(mm)

Dimensions

φD×L(mm)

Weight

(t)

Cutter disk

SteeringCylinder

(kN×set)

Internal pipe

 (mm)

Spiral machine specifications

(mm)

Power

(kW×set)

Torque

(kN·m)

rpm

TPD1500

1820×4200

17

2×30

248

630×4

70

300

TPD1650

2000×4300

19

2×37

260

2.9

800×4

80

300

TPD1800

2180×4400

24

3×30

480

1.8

800×4

80

400

TPD2000

2420×4900

25

4×30

580

630×8

80

400

TPD2200

2660×5000

33

4×37

600

2.4

800×8

80

400

TPD2400

2900×5300

42

4×37

600

2.4

800×8

80

460

TPD2600

3140×5500

48

6×37

1400

1.55

1000×8

100

460

TPD3000

3620×5800

58

6×37

1400

1.55

2000×8

100

560

TPD3500

4160×6000

78

6×37

1400

1.55

2000×8

100

600

TPD4000

4820×6000

90

8×37

1850

1.55

2000×8

100

670

Earth Pressure Balance Pipe Jacking Machine

Yangzhou Dilong Machinery Co., Ltd.

The company is a branch of Taizhou Best Automation Technology Co., Ltd. It is a high quality Earth Pressure Balance Pipe Jacking Machine and wholesale Earth Pressure Balance Pipe Jacking Machine company, high-tech enterprise integrating R&D, production, and sales. The company's products help enterprises reduce human resources, save production costs, increase output, and achieve automated and unmanned production. We adhere to the business philosophy of "integrity-based, service-oriented", win customer satisfaction with efficient and fast services, establish a complete service system, and extend service content to the entire process of pre-sales, sales, and after-sales to achieve comprehensive and thoughtful Zero defect service. Help you establish a new intelligent production system.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

send
Yangzhou Dilong Machinery Co., Ltd.

As China Earth Pressure Balance Pipe Jacking Machine Suppliers and Earth Pressure Balance Pipe Jacking Machine Company, Yangzhou Dilong Machinery Co., Ltd. is a professional production enterprise that integrates the design, manufacturing, and service of various non-excavation equipment. It mainly produces mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various pipe jacking supporting equipment between 1000-4500mm.
The company is located in Jiangdu District, Yangzhou City, adjacent to Suzhong Airport, Ningqi Railway, and Beijing Shanghai Expressway, with convenient transportation and smooth logistics. The company covers an area of 80 acres, has 100 employees, an annual output value of 100 million yuan, complete large-scale processing equipment, and strong strength.
Since its establishment, the company has aimed at the goal of "quality and brand, crossing the globe, and building a non-excavation production base", widely absorbing advanced technologies from home and abroad, constantly keeping pace with the times, innovating and improving. We can also Wholesale Earth Pressure Balance Pipe Jacking Machine in bulk. Its professional equipment has reached a high level in the industry and has won the recognition and trust of users with product quality, on-time delivery, and thoughtful service. Its products are sold to many countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.
Sincerely welcome friends from all walks of life at home and abroad to visit negotiate, and seek common development.

Certificate Of Honor

Product Knowledge

The influence of soil type on the operating efficiency of EPB pipe jacking machine

For soft soil layers, EPB pipe jacking machine can maintain the stability of the shield by controlling the soil pressure on the cutting surface to avoid collapse and settlement. However, in this kind of soil, the high moisture and low bearing capacity of the soil will increase the difficulty of soil transportation, causing the machine to frequently encounter blockage problems during the advancement process. In order to solve this problem, reasonable slurry injection and soil improvement technology are very critical. Through effective grouting, soft soil can be reinforced, its bearing capacity can be enhanced, and the machine can work smoothly. In hard soil and sand layers, earth pressure balance pipe jacking machine requires more thrust to overcome higher soil friction and greater compressive strength. At this time, the design of the cutting tool and thrust system of the jacking machine is particularly important. Hard soil and sand layers require higher adaptability of the machine. Appropriate tool configuration and powerful power system can ensure efficient operation of the equipment.

As an efficient EPB pipe jacking machine manufacturer, our products are designed to cope with various complex soil conditions. They use advanced technology and high-strength materials to ensure the excellent performance of the machine in different geological environments such as soft soil, hard soil, sand and pebble layers. Our EPB pipe jacking machine has a precise soil pressure control system that can automatically adjust working parameters according to different soil conditions to achieve optimal operating efficiency. At the same time, the machine's efficient soil handling and transportation system reduces blockage problems during construction, improves production efficiency, and reduces the risk of manual intervention and equipment failure.

Differences in soil types make the performance of EPB pipe jacking machines vary greatly in different projects. However, through precise design and construction management, the efficiency and safety of operations can be ensured even in complex geological environments. Whether facing the challenges brought by soft soil or the stringent requirements of hard soil layers on machines, our EPB pipe jacking machine can provide the best solutions through optimized design and technological innovation to help customers successfully complete various underground engineering projects.

The role of EPB pipe jacking machine in promoting urban rail transit construction

Tunnel construction of urban rail transit often faces complex underground soil conditions, especially in densely populated areas, and often needs to be carried out through underground space to avoid excessive interference with ground transportation and daily life. The traditional excavation method not only has a long construction period, high noise, and serious pollution, but also causes settlement and vibration to surrounding buildings and the ground. In contrast, the application of EPB pipe jacking machine can effectively reduce these problems. EPB pipe jacking machine adopts soil pressure balance technology, which can realize soil pressure stabilization control during the advancement process. Through reasonable soil grouting and pressure regulation, it ensures the smooth progress of construction, avoids the risk of groundwater infiltration and ground subsidence, and reduces the disturbance to the surrounding environment.

Especially in densely populated urban areas, the advantages of earth pressure balance pipe jacking machine are more obvious. As a highly automated and intelligent equipment, it can adapt to various complex soil types such as soft soil, hard soil, sand and gravel, and maintain the stability of tunnel excavation through precisely controlled soil pressure balance. This technology not only improves construction efficiency, but also ensures good stability of soil during tunnel construction, avoiding blockage of pipe jacking machine or damage to the machine due to uneven geology. Our EPB pipe jacking machine is designed with special attention to improving efficiency and safety. It adopts a powerful tool system and thrust device to ensure rapid advancement under complex geological conditions and reduce the need for equipment failure and maintenance.

The application of EPB pipe jacking machine in urban rail transit projects not only improves the efficiency and quality of construction, but also significantly reduces the impact on urban traffic. In traditional tunnel construction, ground traffic requires large-scale traffic control and the construction period is often long, but the construction method of the EPB pipe jacking machine can largely avoid these problems and reduce the impact on citizens' daily lives. Through efficient excavation and pipe jacking operations in underground tunnels, urban rail transit construction can be completed in a shorter time, ensuring the smooth progress and on-time delivery of the project.
