Hard Rock Tunnel Boring Machine-Double Shield TBM

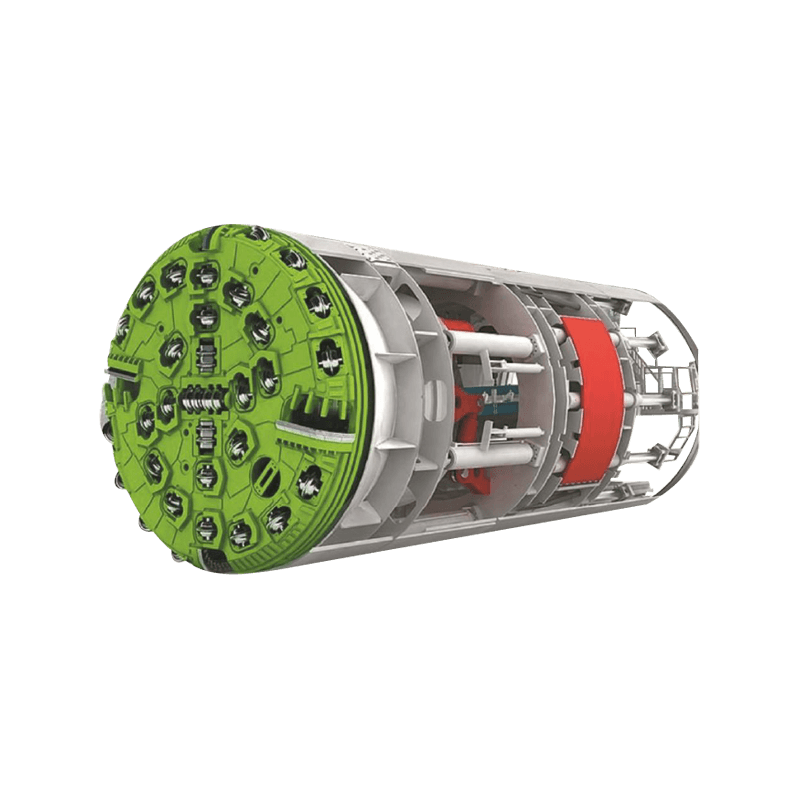

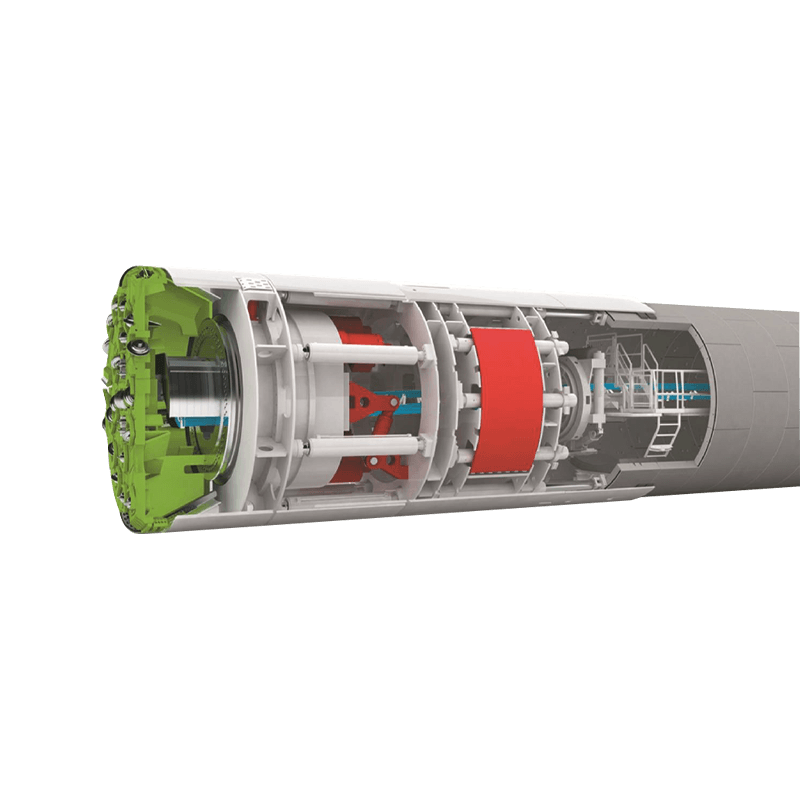

Double Shield TBMs consist of a rotating cutter head mounted to the cutter head support, followed by three shields: a telescopic shield (a smaller diameter inner shield that slides within the larger outer shield), a gripper shield, and a tail shield.

In normal operation ( "double shield mode" ), the gripper shoes are energized, pushing against the tunnel walls to react to the boring forces. The main propel cylinders are then extended to push the cutter head support and cutter head forward. The rotating cutter head cuts the rock

The telescopic shield extends as the machine advances keeping everything in the machine under cover and protected from the ground surrounding it.

Contact us

Description

Position

● Continuous tunneling at maximum speed

Geology

● All kinds of stable and unstable rock

Advantages

● High advance rates in stable rock due to continuous tunneling operation

● Flexible use in all kinds of rock

● High level of work safety for the machine personnel in geological fault zones


Standard Features on All Yangzhou Dilong Double Shield TBMs

● Flat, low profile cutter head to enhance face support in broken rock.

● Recessed muck bucket openings with grill bars to prevent ingestion of large rock blocks

● Back-loading cutters for safe cutter changing in unstable rock conditions.

● Dual thrust-reaction systems, enable thrust reaction from the tunnel walls or the tunnel lining.

● High-speed segment erector.

● Two-piece articulated telescopic shield offers safety, access to surrounding ground for examination and treatment, and smooth steering through curves.

Hard Rock Tunnel Boring Machine-Double Shield TBM

Yangzhou Dilong Machinery Co., Ltd.

The company is a branch of Taizhou Best Automation Technology Co., Ltd. It is a high quality Hard Rock Tunnel Boring Machine-Double Shield TBM and wholesale Hard Rock Tunnel Boring Machine-Double Shield TBM company, high-tech enterprise integrating R&D, production, and sales. The company's products help enterprises reduce human resources, save production costs, increase output, and achieve automated and unmanned production. We adhere to the business philosophy of "integrity-based, service-oriented", win customer satisfaction with efficient and fast services, establish a complete service system, and extend service content to the entire process of pre-sales, sales, and after-sales to achieve comprehensive and thoughtful Zero defect service. Help you establish a new intelligent production system.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

send
Yangzhou Dilong Machinery Co., Ltd.

As China Hard Rock Tunnel Boring Machine-Double Shield TBM Suppliers and Hard Rock Tunnel Boring Machine-Double Shield TBM Company, Yangzhou Dilong Machinery Co., Ltd. is a professional production enterprise that integrates the design, manufacturing, and service of various non-excavation equipment. It mainly produces mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various pipe jacking supporting equipment between 1000-4500mm.
The company is located in Jiangdu District, Yangzhou City, adjacent to Suzhong Airport, Ningqi Railway, and Beijing Shanghai Expressway, with convenient transportation and smooth logistics. The company covers an area of 80 acres, has 100 employees, an annual output value of 100 million yuan, complete large-scale processing equipment, and strong strength.
Since its establishment, the company has aimed at the goal of "quality and brand, crossing the globe, and building a non-excavation production base", widely absorbing advanced technologies from home and abroad, constantly keeping pace with the times, innovating and improving. We can also Wholesale Hard Rock Tunnel Boring Machine-Double Shield TBM in bulk. Its professional equipment has reached a high level in the industry and has won the recognition and trust of users with product quality, on-time delivery, and thoughtful service. Its products are sold to many countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.
Sincerely welcome friends from all walks of life at home and abroad to visit negotiate, and seek common development.

Certificate Of Honor

Product Knowledge

Double Shield TBM's Electrical and Mechanical Systems: The Evolution from Automation to Intelligence

In terms of mechanical systems, the Double Shield TBM relies on a precise propulsion system and rotating cutter head, continuously overcoming technical bottlenecks to achieve more efficient tunneling. In the past, the operation of tunnel boring machines, including propulsion and cutter head movements, relied heavily on manual adjustments and control. However, with the integration of electrical and mechanical systems, the TBM now operates with fully automated and precise functions. The propulsion system of the hard rock tunnel boring machine-double shield TBM uses intelligent algorithms to calculate the optimal advancement path and cutting force, automatically adjusting the cutter head’s rotation speed and cutting pressure to handle varying rock hardness and structures. The introduction of this automated control system not only improves the speed of construction but also significantly enhances operational precision and stability, especially in hard rock or complex geological conditions.

With further advancements in intelligent technology, the electrical and mechanical systems of the Double Shield TBM are evolving toward more intelligent operations. The machine can now automatically adjust its working mode based on geological changes, optimizing itself for more efficient operation. This process is supported by advanced sensor technology and data acquisition systems, which can monitor a wide range of parameters during tunnel excavation, such as geological pressure, machine operational status, and advancement speed. Data analysis systems then process and optimize this information. The inclusion of intelligent systems has not only enhanced the automation level of the TBM but also enabled the machine to respond more flexibly to complex tunneling environments, thereby ensuring the safety and efficiency of tunnel construction.

As a manufacturer and supplier of Hard Rock Tunnel Boring Machine – Double Shield TBM, our product stands out with its remarkable advantages in electrical and mechanical system integration and intelligence. Our Double Shield TBM is equipped with an efficient propulsion system and advanced electrical control technology that allows it to adapt to various complex geological conditions, ensuring high efficiency and safety during construction. By continuously incorporating automation and intelligent technologies, our TBM not only improves work efficiency but also significantly reduces human intervention and machine failure rates. Whether it's urban underground infrastructure projects, subway tunneling, or long-distance tunnel construction across regions, our Double Shield TBM provides strong technical support with its superior electrical and mechanical systems, ensuring precision in construction.

How to Troubleshoot and Maintain Double Shield TBM

Common failures in Double Shield TBMs usually occur in the propulsion system, electrical control system, and cutting components. For propulsion system failures, operators can assess the condition of the hydraulic system and propulsion motor to identify the issue. Common faults, such as problems with the hydraulic pump or valves, may result in insufficient or abnormal thrust. In such cases, a thorough inspection and maintenance of the hydraulic system are required to ensure the hydraulic oil quality and pressure stability. Failures in the electrical control system typically manifest as signal loss or sensor malfunctions. In these cases, checking the cable connections, sensor functionality, and control panel alarms usually helps quickly identify and resolve the problem. For cutter head maintenance and troubleshooting, operators need to regularly check the wear condition of the cutter tools and the distribution of cutting forces, and replace or adjust the cutter head when necessary. Our Hard Rock Tunnel Boring Machine – Double Shield TBM, with its efficient and automated design, makes troubleshooting and maintenance more precise and efficient, reducing equipment downtime and improving construction continuity and stability.

In actual maintenance operations, in addition to regular inspections and upkeep, the availability of spare parts and on-site technical support is also critical. The design of the Double Shield TBM takes on-site maintenance convenience into account, with many key components such as electrical control modules, hydraulic pumps, and cutter tools being easily replaceable or repairable, reducing downtime during repairs. For challenging geological environments or high-load operating conditions, our hard rock tunnel boring machine-double shield TBM is also equipped with a high-efficiency fault detection and diagnostic system. This system not only provides intelligent alerts when faults occur but also generates detailed fault analysis reports, further enhancing the efficiency and accuracy of troubleshooting.

Through efficient management and timely maintenance, the Double Shield TBM can maintain long periods of high-efficiency operation during construction, reducing operational costs and failure rates. Our product, with its advanced integration of electrical and mechanical technology, provides substantial technical support for tunnel projects, ensuring the stability of the equipment in various complex geological conditions. Whether it’s daily inspections or rapid responses to faults, our Double Shield TBM, through its precision design and robust technical support system, helps clients maximize work efficiency and minimize construction risks.
