Rectangular Pipe Jacking Machine Manufacturers

Home / Product / Pipe Jacking Machine / Earth Pressure Balance Rectangular Pipe Jacking Machine

Model:

Earth Pressure Balance Rectangular Pipe Jacking Machine

Feature:

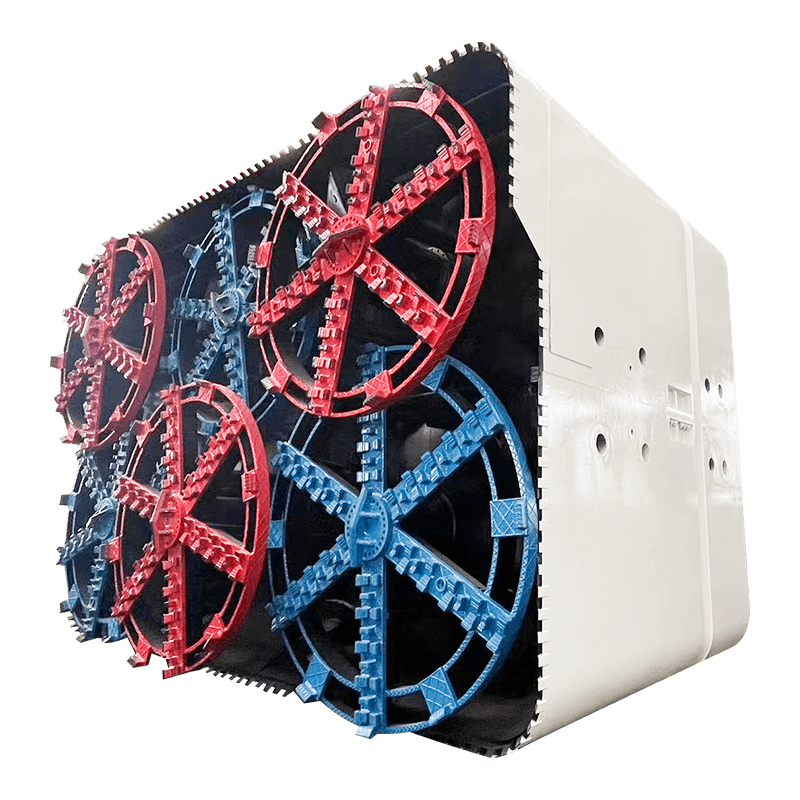

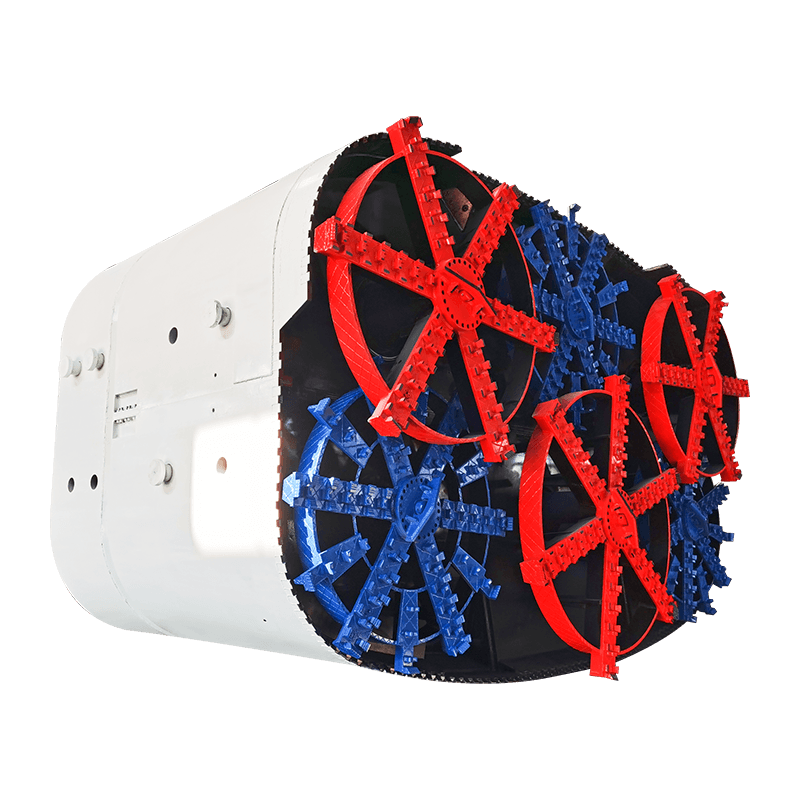

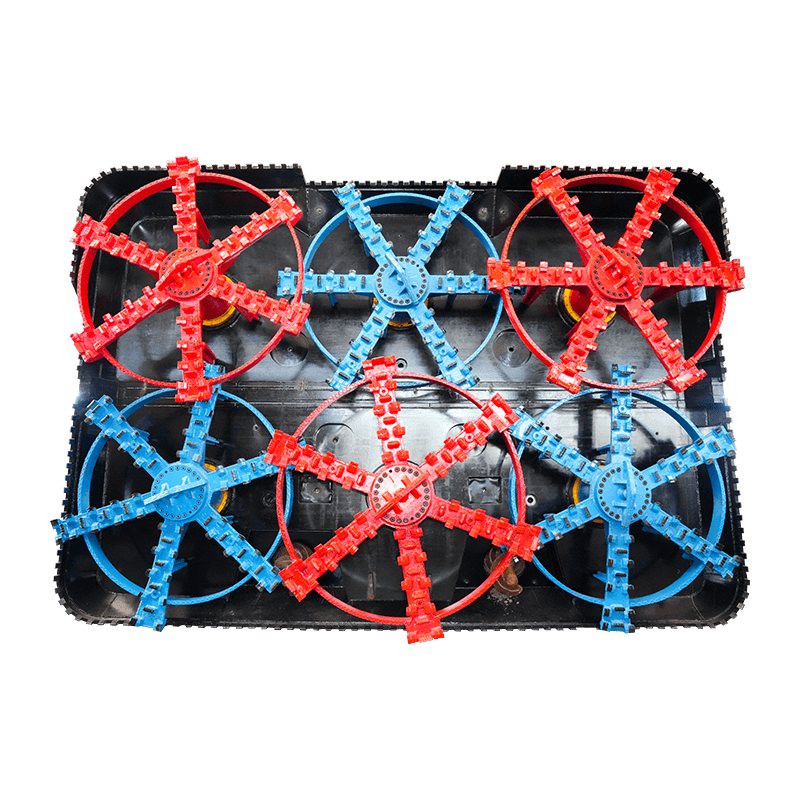

1. Multiple cutting discs are used for cutting, with a cutting rate greater than 90%6. For blind spots, tooth cutters and guide plates are installed, and the tool arrangement meets the
construction requirements for crossing the reinforcement area.

2. The pipe jacking machine's main shaft seal and shell hinge seal are highly reliable. They protect the main shaft and prevent water leakage at the hinge parts.

3. Equipped with an articulated correction function, it can effectively adjust the posture in conjunction with surrounding mud injection holes.

4. Install anti-backsoil grouting slots above the front shell to prevent backsoil phenomena from occurring.

5. Its function is soil improvement, meeting the construction requirements of jacking and excavation in complex and unfavorable formations.

Contact us

Description

Application areas:

It is mainly used in urban areas to construct underground passages, subway station entrances and exits, underground public facility pipelines, and other underground projects without closing traffic, relocating underground pipelines, or damaging the street view.

Technical parameter
Diameter
LxWxH(MM)
2800x2800x5400 3000x3000×5290 4200x6900×5500 5300x7700x5600  9800x6300x5700
Steering System Steering Oil Pump Motor Power(KW) 11  11  11  11 30
Max.Pressure(MPA) 315  31.5  31.5  31.5  315
Steering Cylinder Stroke(MM) 200  200  200  200  200
Max.Steering Angle(") Up/Down3 Up/Down3 Up/Down3 Up/Down3 Up/Down3
Left/Right3 Left/Right3 Left/Right3 Left/Right3 Left/Right3
Thrust(T)x QTY. 200<8 200x8 200x16 200x16 200*24
Screw Conveyor ID(MM) 4.520  4520  4560  4.560  4670
Motor Power(KW) 30(Frequency Conversion) 30(Frequency Conversion) 37(Frequency Conversion) 37(Frequency Conversion) 55 (Frequency Conversion)
QTY
Speed(R/MIN) 0-15.3 0-153 00-12 00-12   00-12
Total Power(KW) 189  221  505  505    1040
Earth Pressure Balance Rectangular Pipe Jacking Machine

Yangzhou Dilong Machinery Co., Ltd.

The company is a branch of Taizhou Best Automation Technology Co., Ltd. It is a high quality Earth Pressure Balance Rectangular Pipe Jacking Machine and wholesale Earth Pressure Balance Rectangular Pipe Jacking Machine company, high-tech enterprise integrating R&D, production, and sales. The company's products help enterprises reduce human resources, save production costs, increase output, and achieve automated and unmanned production. We adhere to the business philosophy of "integrity-based, service-oriented", win customer satisfaction with efficient and fast services, establish a complete service system, and extend service content to the entire process of pre-sales, sales, and after-sales to achieve comprehensive and thoughtful Zero defect service. Help you establish a new intelligent production system.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

send
Yangzhou Dilong Machinery Co., Ltd.

As China Rectangular Pipe Jacking Machine Manufacturers and Rectangular Pipe Jacking Machine Factory, Yangzhou Dilong Machinery Co., Ltd. is a professional production enterprise that integrates the design, manufacturing, and service of various non-excavation equipment. It mainly produces mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various pipe jacking supporting equipment between 1000-4500mm.
The company is located in Jiangdu District, Yangzhou City, adjacent to Suzhong Airport, Ningqi Railway, and Beijing Shanghai Expressway, with convenient transportation and smooth logistics. The company covers an area of 80 acres, has 100 employees, an annual output value of 100 million yuan, complete large-scale processing equipment, and strong strength.
Since its establishment, the company has aimed at the goal of "quality and brand, crossing the globe, and building a non-excavation production base", widely absorbing advanced technologies from home and abroad, constantly keeping pace with the times, innovating and improving. We can also Custom Rectangular Pipe Jacking Machine in bulk. Its professional equipment has reached a high level in the industry and has won the recognition and trust of users with product quality, on-time delivery, and thoughtful service. Its products are sold to many countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.
Sincerely welcome friends from all walks of life at home and abroad to visit negotiate, and seek common development.

Certificate Of Honor

Product Knowledge

How the Earth Pressure Balance Rectangular Pipe Jacking Machine Solves Geological Disasters and Underground Obstacles

Geological disasters, such as groundwater intrusion, soft soil layers, and fractured rock formations, are often the biggest challenges encountered during pipe jacking construction. Traditional pipeline construction methods struggle to address these issues effectively, whereas the Earth Pressure Balance (EPB) technology can dynamically adjust the cutterhead thrust, maintaining a balance between the soil and groundwater pressures, effectively preventing surface subsidence and tunnel collapse risks. The rectangular pipe jacking machine is particularly suited to complex underground environments, surpassing the capabilities of round pipe jacking machines. By precisely controlling the shield thrust and cutting process, it ensures that construction can proceed smoothly even under unstable geological conditions. This pressure balancing system not only enhances construction efficiency but also significantly reduces the impact on the surrounding environment.

Moreover, underground obstacles such as reinforced concrete blocks, debris, or rocks are common challenges in pipeline construction. Traditional methods often require extensive manual intervention, which can extend the construction timeline. The Earth Pressure Balance Rectangular Pipe Jacking Machine, however, is equipped with a highly efficient cutting system and powerful thrust capabilities, allowing it to break through these obstacles effectively. The machine’s cutterhead, thrust system, and automatic adjustment functions ensure that when encountering varying hardness of obstacles, the machine can make timely adjustments to minimize any potential damage to the equipment.

In this regard, as a manufacturer, I offer the Earth Pressure Balance Rectangular Pipe Jacking Machine, which, with its efficient performance and reliability, serves as an ideal solution to geological disasters and underground obstacles. My product is equipped with advanced cutting tools and an efficient sealing system that can withstand complex soil conditions and groundwater pressures. Additionally, the intelligent adjustment system ensures continuous and stable operation during construction. These technological advantages ensure that our pipe jacking machine not only performs excellently under adverse geological conditions but also maintains efficient progress when encountering obstacles, ensuring safety and efficiency throughout the construction process.

How the Earth Pressure Balance Rectangular Pipe Jacking Machine Ensures Tunnel Construction Safety

The core advantage of Earth Pressure Balance technology lies in its ability to dynamically adjust the pressure between the soil and the shield. During tunnel construction, the soil and groundwater ahead of the cutterhead create certain pressures. The EPB system precisely controls the thrust, keeping the pressure in balance on both sides of the shield. This control not only reduces the risk of surface subsidence and tunnel collapse during construction but also effectively prevents sudden groundwater inflows, avoiding soil instability caused by water erosion. Therefore, the Earth Pressure Balance Rectangular Pipe Jacking Machine provides stable support and protection in extremely complex geological environments, significantly reducing the risk of construction accidents caused by unstable ground conditions.

In addition to precise control of geological conditions, the safety of the rectangular pipe jacking machine is also demonstrated in its ability to handle underground obstacles effectively. Underground challenges, such as abandoned buildings, rocks, and existing pipelines, are common in construction projects. Traditional methods often require manual clearing or temporary handling, resulting in extended construction timelines and significant safety hazards. My Earth Pressure Balance Rectangular Pipe Jacking Machine is equipped with an efficient cutting system and intelligent monitoring devices that can detect obstacles in real-time and automatically adjust the thrust and cutting speed according to the geological conditions. This ensures the machine can break through obstacles without compromising equipment or worker safety. Its powerful cutting and thrust capabilities allow the machine to maintain steady progress even when encountering hard obstacles, significantly enhancing construction safety and efficiency.

Furthermore, the design of the rectangular pipe jacking machine takes into account the safety of the construction process. The machine’s body structure is precisely engineered to ensure stability and durability under extreme working conditions. The intelligent operating system and real-time monitoring features allow operators to stay informed about the machine’s status and adjust construction parameters promptly, minimizing the risk of operational errors or equipment failure. As a manufacturer, our Earth Pressure Bala
