Rock Pipe Jacking Machine Manufacturers

Home / Product / Pipe Jacking Machine / Rock Pipe Jacking Machine

Model:

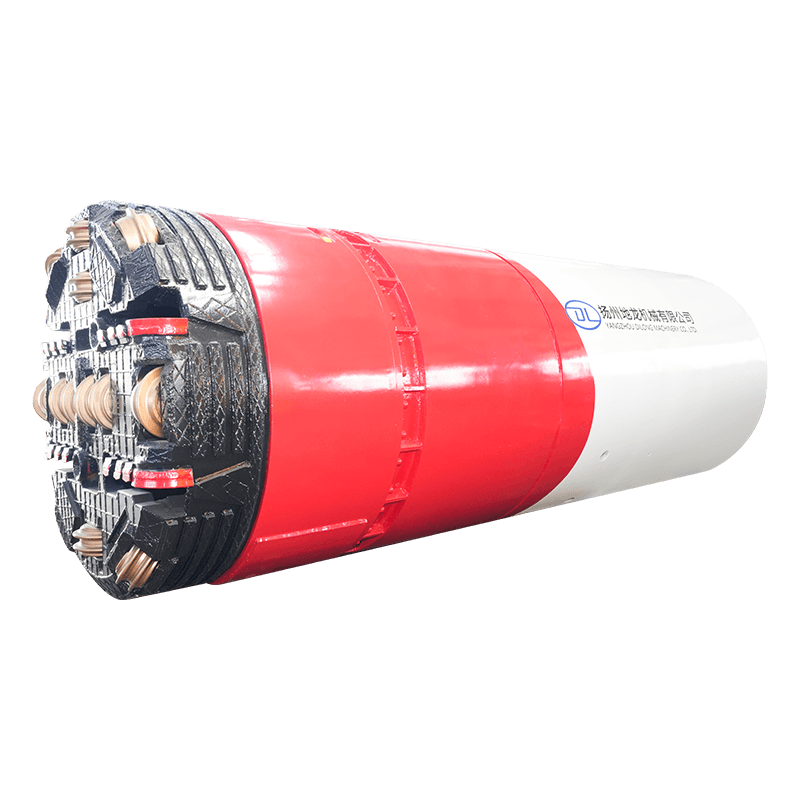

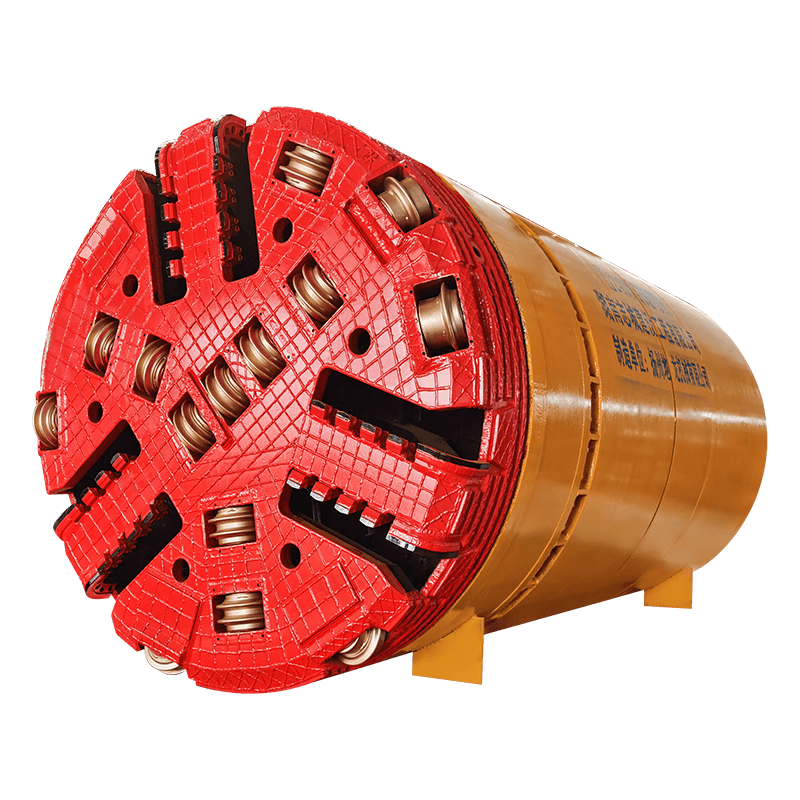

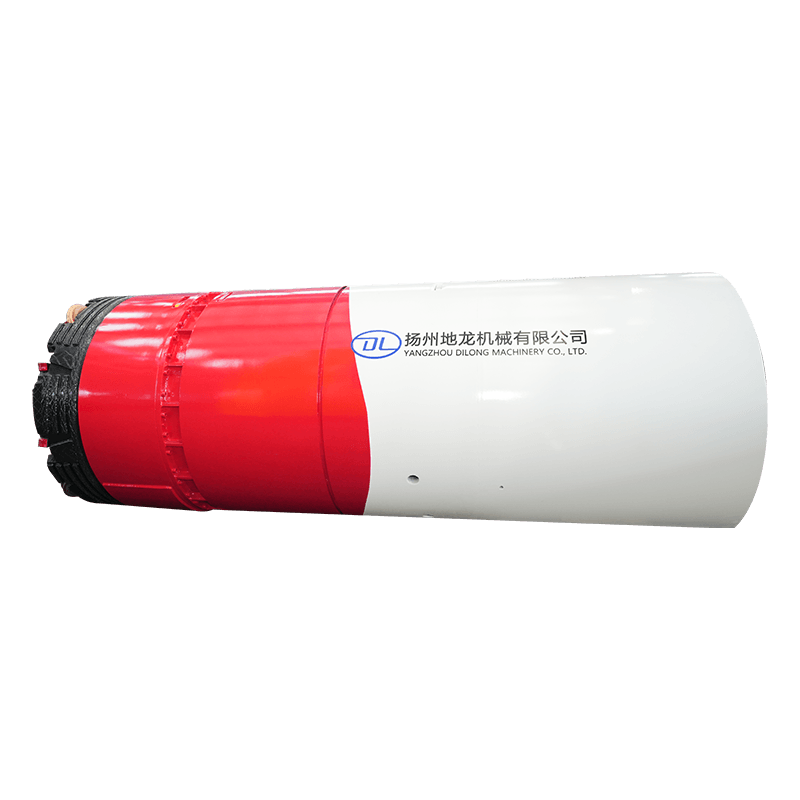

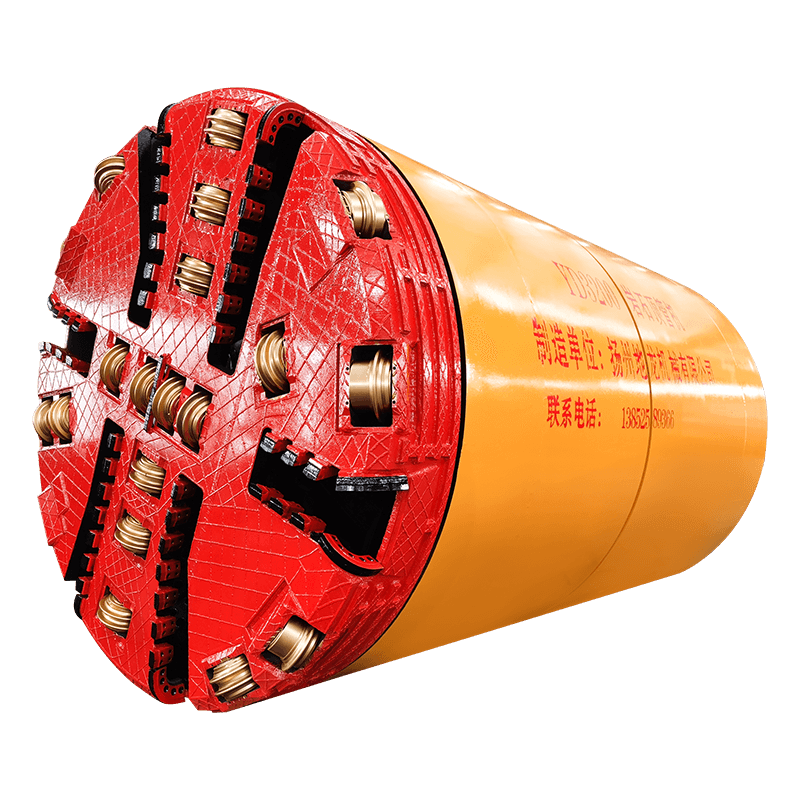

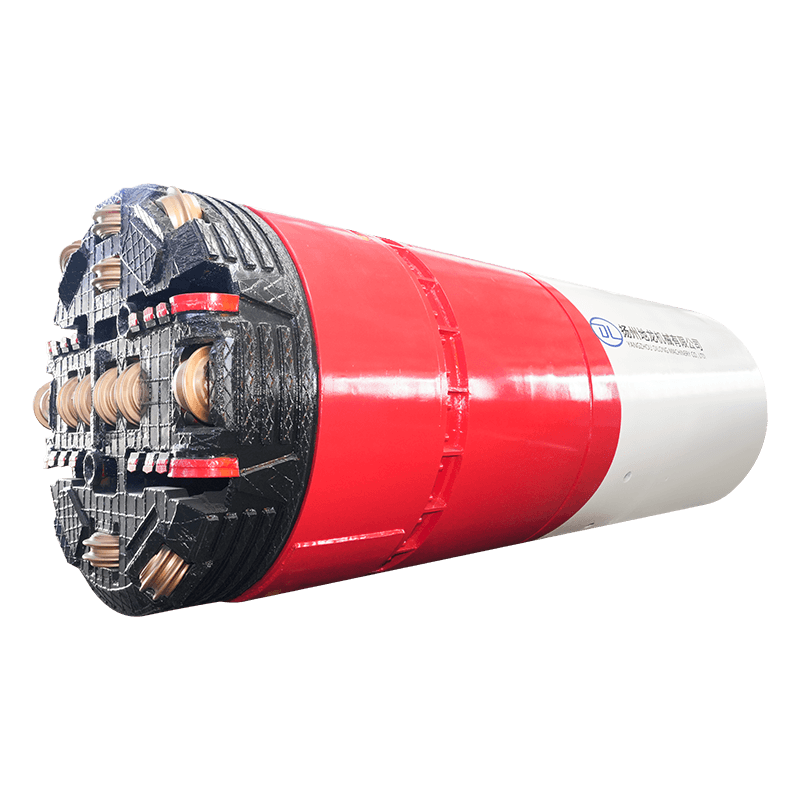

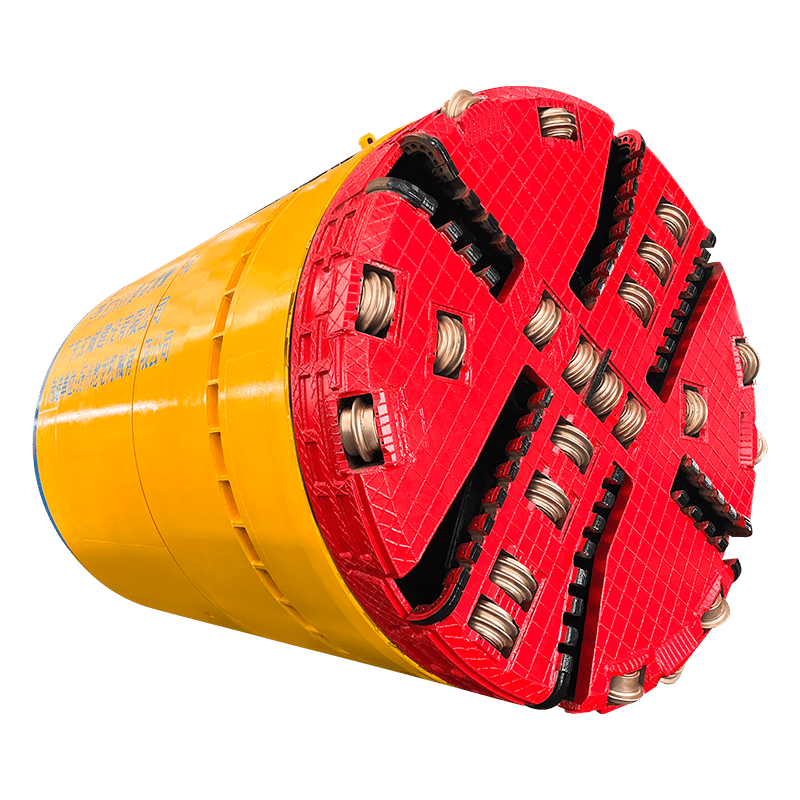

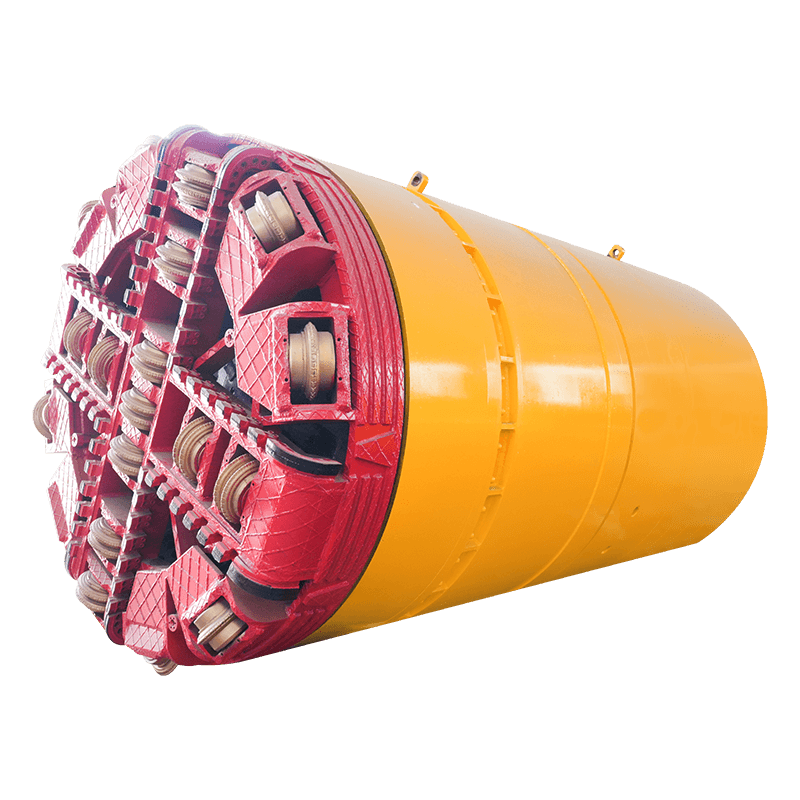

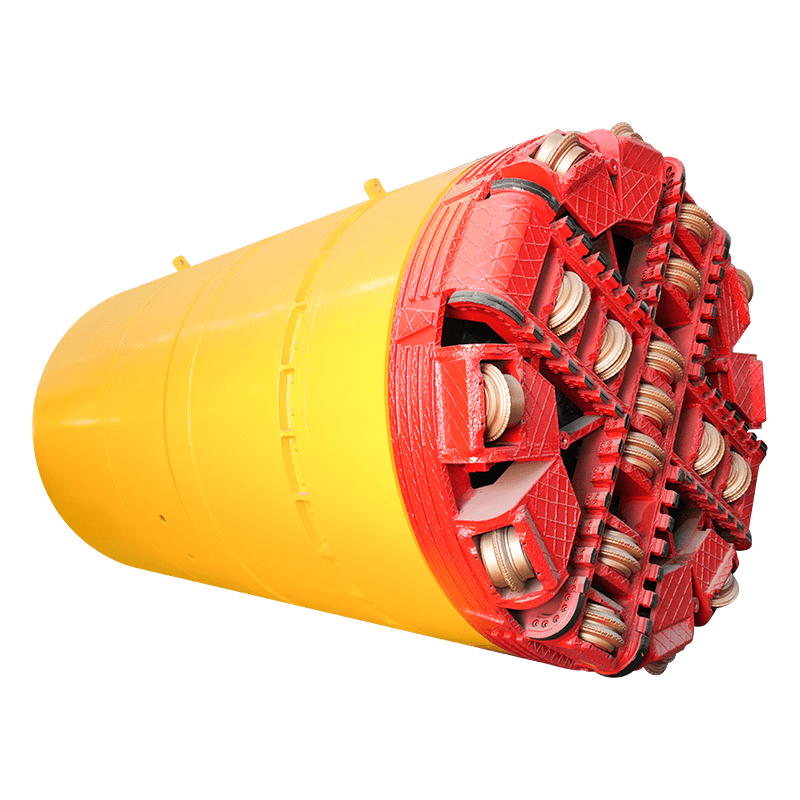

Rock Pipe Jacking Machine

Feature:

1. Cutter bit, when worn out, can be replaced from inside the machine, so suitable for long-distance pipe jacking construction of rock.

2. Suitable for ordinary soil layer to the giant boulders, bedrock, and mixed soil. Rock hardness, 50-200 Mpa.

3. Internal cone crushing plant can be in secondary crushing effectively.

4. The ground computer control.

Contact us

Description

Diameter

(mm)

Dimensions

φD×L(mm)

Weight

(t)

Power

(kW×set)

Torque

(kN ·m)

rpm

Steering cylinder

(kN×set)

Internal pipe

(mm)

YD800

1020×4400

1×30

62

4.7

   380×4

100

YD1000

1220×4400

2×15

120

2.4

   630×4

100

YD1200

1480×4900

14

2×30

170

3.5

   630×4

100

YD1350

1670×4900

17

2×37

210

3.5

   800×4

100

YD1500

1880×5100

21

2×45

290

   1000×4

100

YD1650

2040×5200

24

2×55

320

3.3

   1000×4

150

YD1800

2180×5200

28

4×37

330

3.5

   630×8

150

YD2000

2460×5200

34

4×37

600

2.4

   800×8

150

YD2200

2660×5200

40

4×37

600

2.4

   800×8

150

YD2400

2900×5400

50

4×45

645

2.7

   1000×8

150

YD2600

3140×5700

60

6×37

1400

1.55

   1200×8

150

YD3000

3630×5900

75

8×37

1850

1.55

   2000×8

150

YD3500

4160×6000

90

8×45

1800

1.94

   2000×8

150

YD4000

4830×6100

110

8×55

2200

1.94

   2000×8

150

YD4600

5400×6300

150

8×55

2200

1.94

   2200×8

200

Rock Pipe Jacking Machine

Yangzhou Dilong Machinery Co., Ltd.

The company is a branch of Taizhou Best Automation Technology Co., Ltd. It is a high quality Rock Pipe Jacking Machine and wholesale Rock Pipe Jacking Machine company, high-tech enterprise integrating R&D, production, and sales. The company's products help enterprises reduce human resources, save production costs, increase output, and achieve automated and unmanned production. We adhere to the business philosophy of "integrity-based, service-oriented", win customer satisfaction with efficient and fast services, establish a complete service system, and extend service content to the entire process of pre-sales, sales, and after-sales to achieve comprehensive and thoughtful Zero defect service. Help you establish a new intelligent production system.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

send
Yangzhou Dilong Machinery Co., Ltd.

As China Rock Pipe Jacking Machine Manufacturers and Rock Pipe Jacking Machine Factory, Yangzhou Dilong Machinery Co., Ltd. is a professional production enterprise that integrates the design, manufacturing, and service of various non-excavation equipment. It mainly produces mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various pipe jacking supporting equipment between 1000-4500mm.
The company is located in Jiangdu District, Yangzhou City, adjacent to Suzhong Airport, Ningqi Railway, and Beijing Shanghai Expressway, with convenient transportation and smooth logistics. The company covers an area of 80 acres, has 100 employees, an annual output value of 100 million yuan, complete large-scale processing equipment, and strong strength.
Since its establishment, the company has aimed at the goal of "quality and brand, crossing the globe, and building a non-excavation production base", widely absorbing advanced technologies from home and abroad, constantly keeping pace with the times, innovating and improving. We can also Custom Rock Pipe Jacking Machine in bulk. Its professional equipment has reached a high level in the industry and has won the recognition and trust of users with product quality, on-time delivery, and thoughtful service. Its products are sold to many countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.
Sincerely welcome friends from all walks of life at home and abroad to visit negotiate, and seek common development.

Certificate Of Honor

Product Knowledge

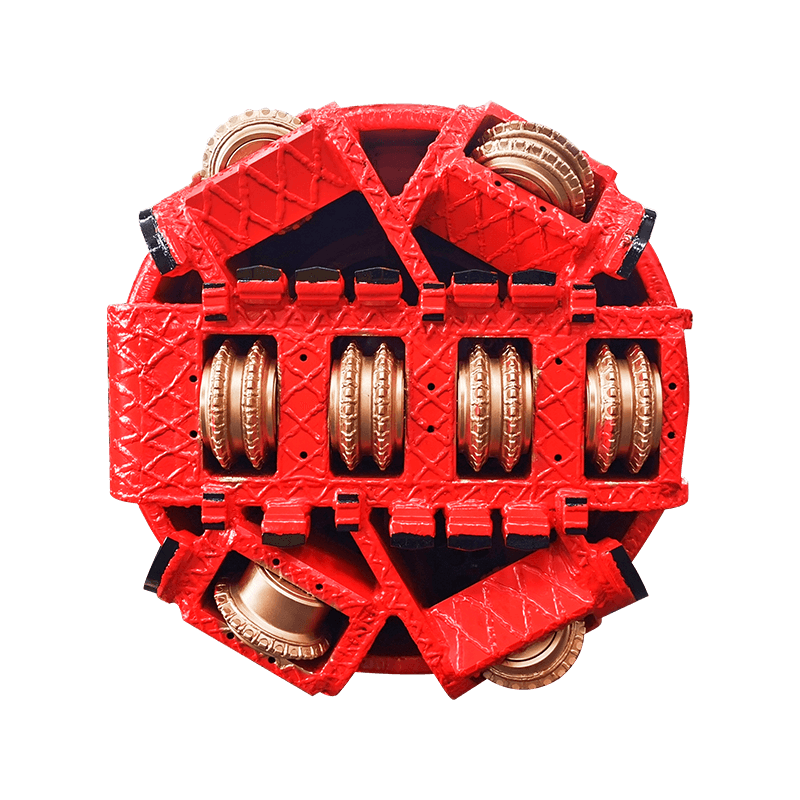

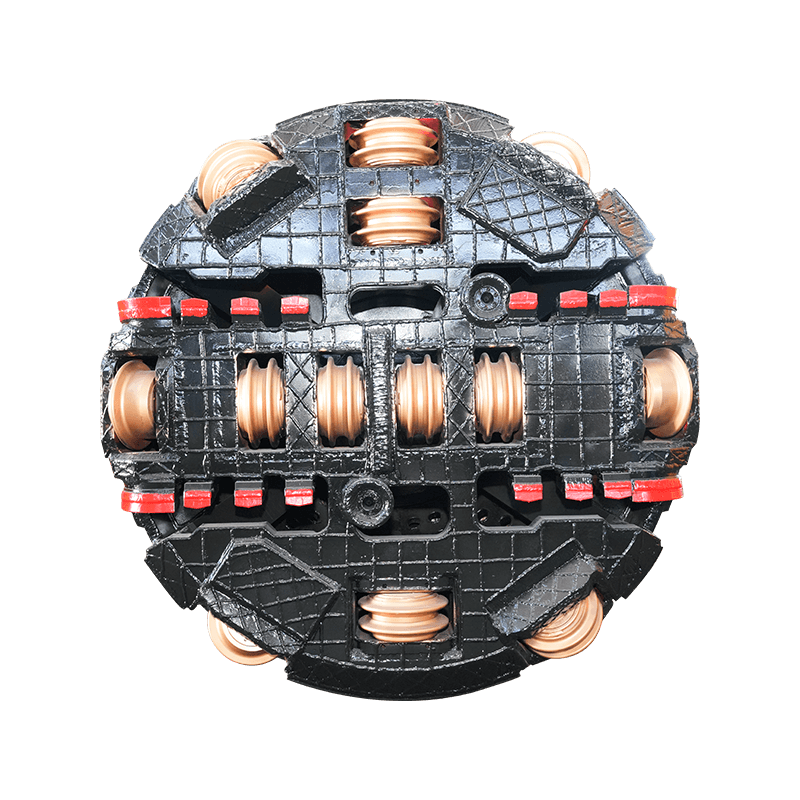

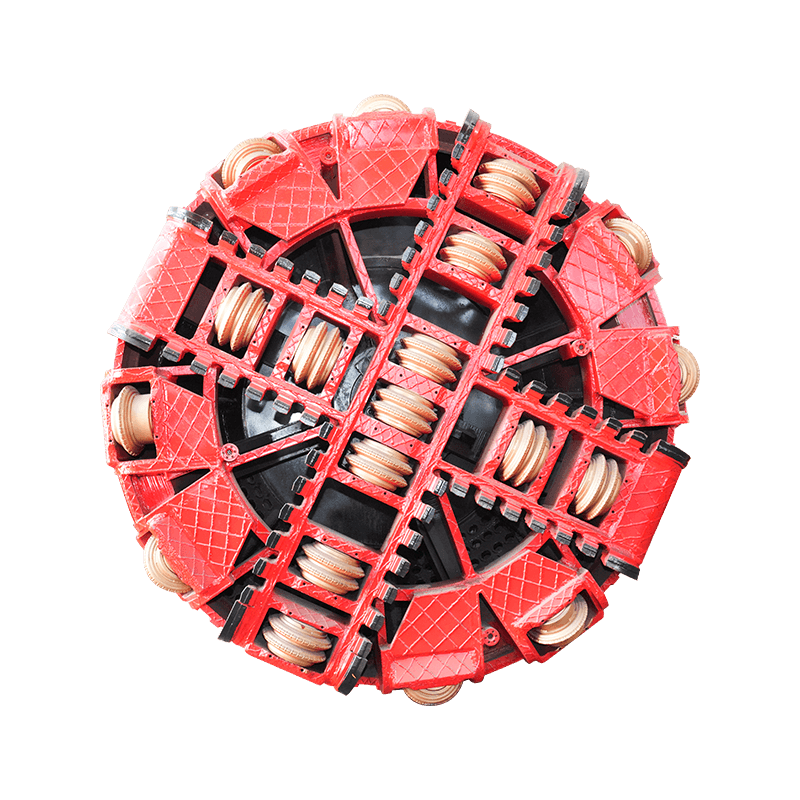

Cutting head technology and performance requirements for rock pipe jacking machines

In hard rock environments, cutting heads must be able to handle rock formations of different hardness, especially when the rock hardness reaches 50-200 MPa. For such environments, the cutting heads of the jacking machine need to have high stability and durability. In order to cope with different types of rocks, the shape and size of the cutting heads also need to be optimized according to the specific soil and rock conditions. For example, some advanced rock pipe jacking machines adopt a replaceable modular cutting head design, so that during long-term construction, the cutting head can be replaced inside the equipment, reducing downtime and ensuring that the construction progress is not affected. This technology also reflects the breakthrough of modern equipment in operating efficiency and equipment maintenance.

The rock pipe jacking machine we provide uses industry-leading cutting head technology and can cope with a variety of construction environments from ordinary soil layers to giant rocks. Our machine not only uses a high-wear-resistant alloy cutting head, but also the cutting head design has been finely optimized to ensure that it can maintain efficient propulsion and stability even when facing hard rock formations. In addition, our equipment is equipped with an advanced secondary crushing system, which can effectively perform secondary crushing during the pipe jacking process, further improving construction efficiency and reducing construction risks.

Common problems and solutions at the construction site of rock pipe jacking machine

At the construction site of rock pipe jacking machine, there are many common problems, usually involving equipment stability, construction progress, changes in geological conditions, and construction safety. First of all, the stability of the equipment is often one of the most common challenges in construction. Since different types of soil and rocks often need to be traversed during construction, these changes may cause the propulsion force of the jacking machine under different geological conditions to be unstable, thereby affecting the operation efficiency. Especially in hard rock layers or areas with large rocks, the cutter head of the jacking machine may suffer from increased wear, affecting the normal construction progress. In addition, in construction with greater depth, the settlement problem of the equipment may also affect the propulsion force, causing the equipment to get stuck or propel slowly.

In response to these problems, the use of high-performance cutting heads and advanced propulsion systems is an effective way to solve the problem of equipment stability. Our rock pipe jacking machine is optimized for this problem. The equipment is equipped with high-strength alloy cutter heads, which can effectively cope with high wear in hard rock environments, reduce the frequency of cutter head replacement, and improve construction continuity. In addition, the propulsion system of the equipment is precisely designed to adaptively adjust the propulsion force to ensure that a stable propulsion speed can be maintained regardless of the geological environment.

Secondly, safety issues at the construction site often plague project progress, especially under complex geological conditions. Pipe jacking machine operators need to deal with highly concentrated forces and pressures. Once the equipment fails or the problem is not discovered in time, it may lead to accidents. In order to ensure construction safety, the monitoring system of the equipment plays a vital role. By monitoring the operating status of the pipe jacking machine in real time, the operator can grasp the various parameters of the equipment at any time, discover potential risks in time, and take measures to avoid accidents. Our "Rock Pipe Jacking Machine" is equipped with an advanced intelligent control system that can monitor the operating status of the cutter head, propulsion force and the overall health of the equipment in real time to ensure that the equipment operates efficiently within a safe range.

Another common problem is water seepage or groundwater influx during construction, which also poses a challenge to the operation of rock pipe jacking machines. When encountering complex groundwater levels, water seepage problems may cause unstable pressure in the operating area, which in turn affects construction efficiency. To deal with this problem, the waterproof design and sealing technology of the pipe jacking machine are crucial. By improving the waterproof performance of the equipment, the adverse effects of water flow on the equipment can be effectively prevented. Our rock pipe jacking machine is specially designed on the sealing system to ensure that the equipment can maintain stable operation even under geological conditions with abundant groundwater.
