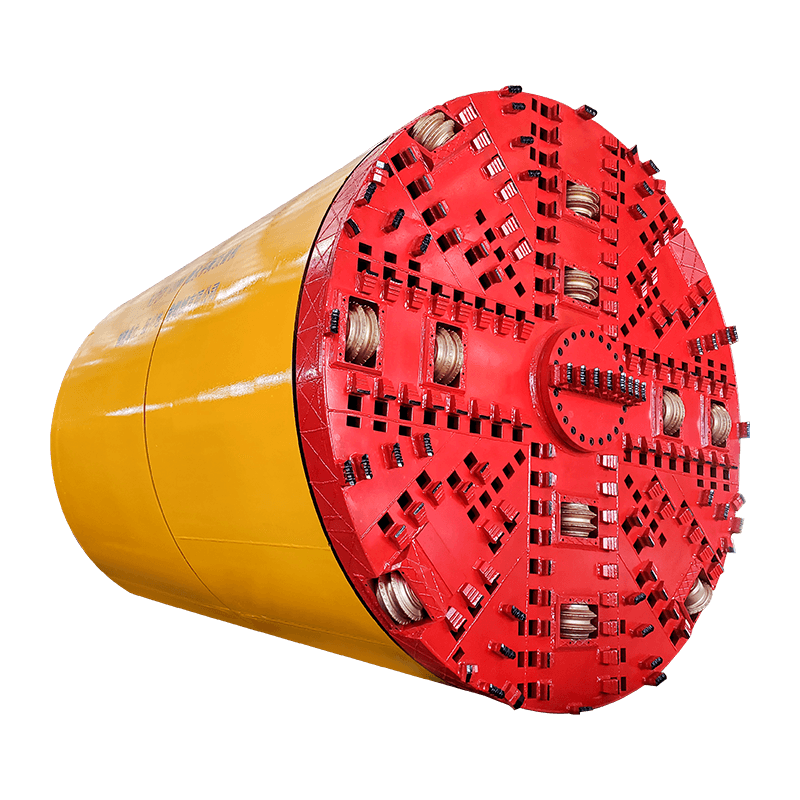

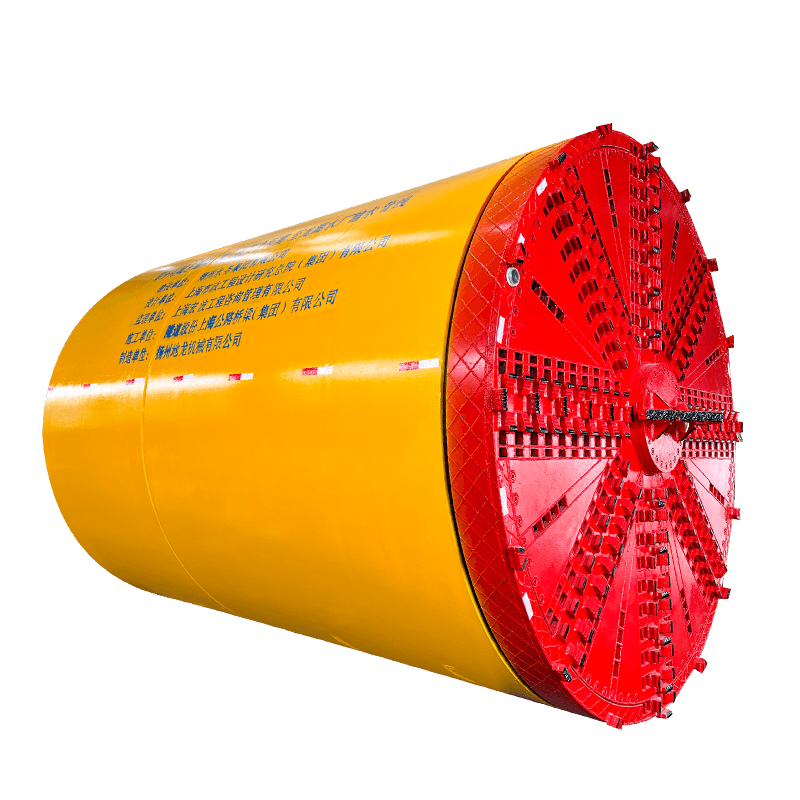

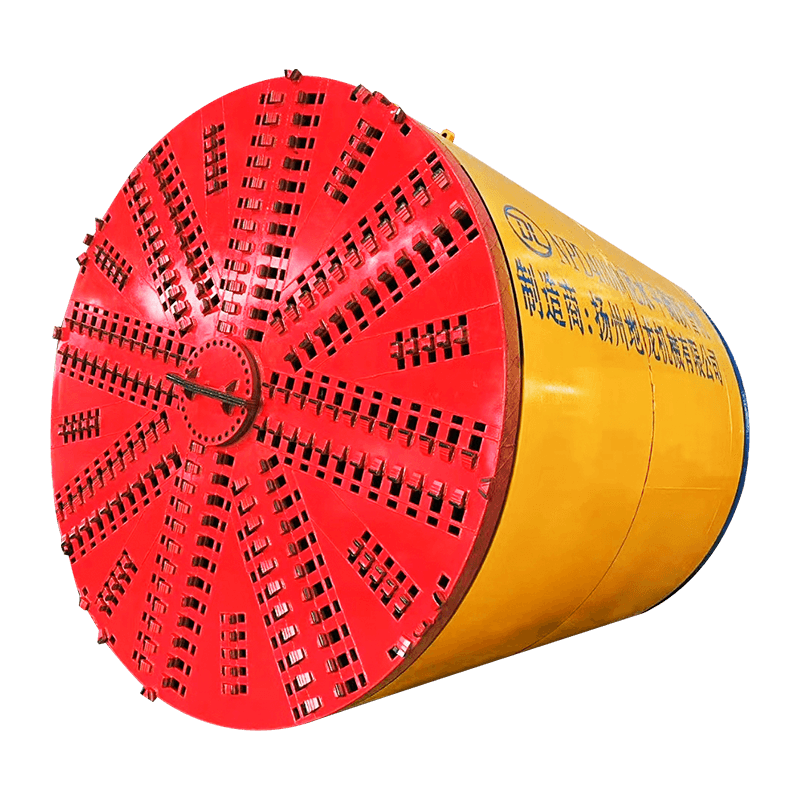

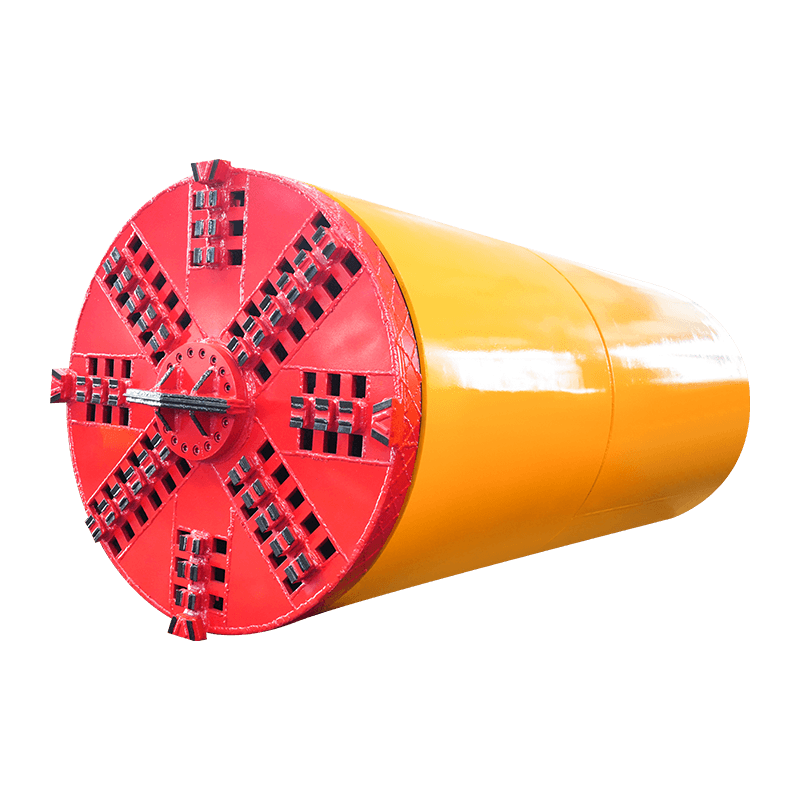

Slurry Balance Pipe Jacking Machine

Key components and functions of slurry balance pipe jacking machine

Slurry balance pipe jacking machine is a highly efficient equipment widely used in tunnel construction and pipeline construction. Through slurry balance technology, it can successfully complete the pipeline jacking operation under complex geological conditions, and this process is inseparable from the cooperation of its precise key components. First of all, the slurry pump is one of the core components of the equipment, which is responsible for pumping the slurry to the front end of the pipeline at high pressure to form a certain pressure and maintain the fluidity and balance of the slurry during the jacking process. The performance of the slurry pump directly affects the jacking speed and construction efficiency of the equipment, especially in the construction environment of soft soil, clay or other soft soil, the role of the slurry pump is crucial.

Secondly, the sealing system is also a key component of the slurry balance pipe jacking machine, especially in the process of pipeline jacking, the sealing of the slurry is directly related to the stability and safety of the construction. An efficient sealing system can effectively prevent the leakage of slurry, while keeping the construction area clean and reducing pollution to the environment. This not only meets environmental protection requirements, but also can avoid construction interruptions or soil erosion problems that may be caused by slurry leakage.

The hydraulic system is responsible for providing power and stable support in the mud-balanced pipe jacking machine. Especially in the process of pipe jacking, the hydraulic system provides a stable power source for the equipment to propel, and can adjust the pressure to ensure the accuracy of the jacking path when the pipeline turns or encounters obstacles. The stability of the hydraulic system is crucial to the operation of the entire equipment, especially during long-term operations, the hydraulic system must be able to withstand constant pressure changes and load fluctuations.

In order to ensure that these key components can work together efficiently, the mud-balanced pipe jacking machine is usually equipped with an advanced central control system. The system can not only monitor the operating status of the equipment in real time, but also adjust the flow, pressure and sealing status of the mud in time to ensure the smooth progress of the entire construction process. Through this intelligent control system, the operator can safely and conveniently control the equipment on the ground, grasp the construction progress in real time, and respond quickly to any emergencies, greatly improving the safety and efficiency of construction.

Soil adaptability and usage scenarios of slurry balance pipe jacking technology

For soft soil and clay that are easy to flow and collapse, the slurry balance pipe jacking machine can adjust the fluidity and density of the slurry to form a stable slurry barrier to avoid soil loss and the tilting of the pipe during the jacking process. This technology is particularly suitable for areas with high groundwater levels, because the slurry can effectively control the impact of groundwater on construction and ensure the stability and accuracy of the jacking process. In sandy soil and gravel soil, the role of the slurry is to enhance the cohesion of the soil and prevent the pipeline from being disturbed by unstable soil layers, thereby ensuring the smooth progress of construction. In harder soils such as hard soil, the slurry balance technology can also play its advantages. Through high-pressure pumping of the slurry, it overcomes the hardness of the soil and smoothly pushes the pipeline to complete the jacking.

Our "Slurry Balance Pipe Jacking Machine" has been carefully designed and optimized under this variable soil condition, showing strong adaptability and stability. The equipment is equipped with an advanced slurry pump and sealing system, which can adjust the slurry pressure and flow in different soils to ensure the smooth jacking of the pipeline. Its unique mud recovery and treatment system not only ensures the efficiency and environmental protection of the construction process, but also prolongs the service life of the equipment and reduces the risk of pollution during construction. In addition, the intelligent central control system makes the operation more intuitive and safe. The operator can monitor the state of the mud in real time and quickly adjust the equipment operating parameters according to the on-site conditions, further improving the construction accuracy and efficiency.
